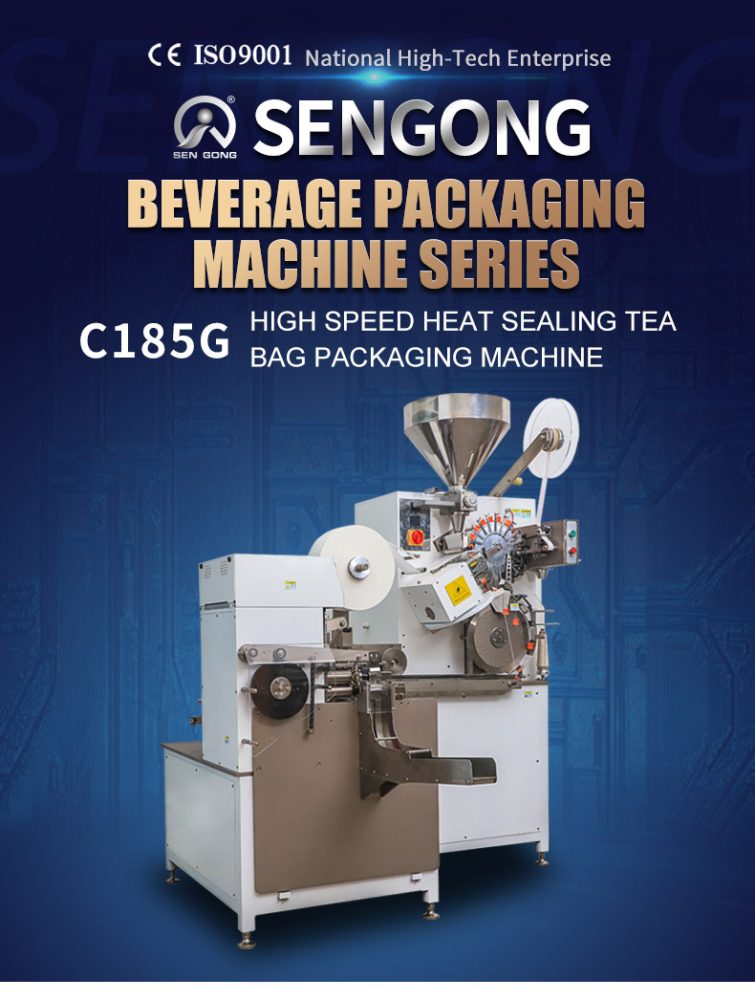

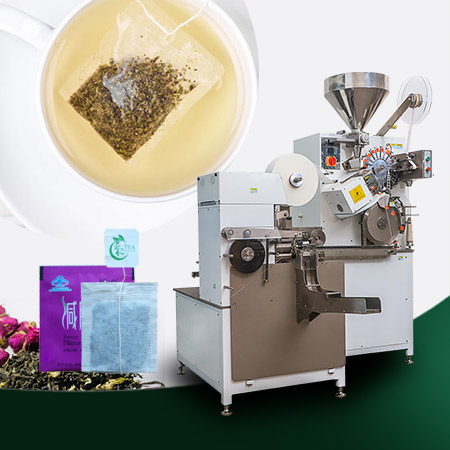

Máy đóng gói túi trà hàn nhiệt tốc độ cao C185G

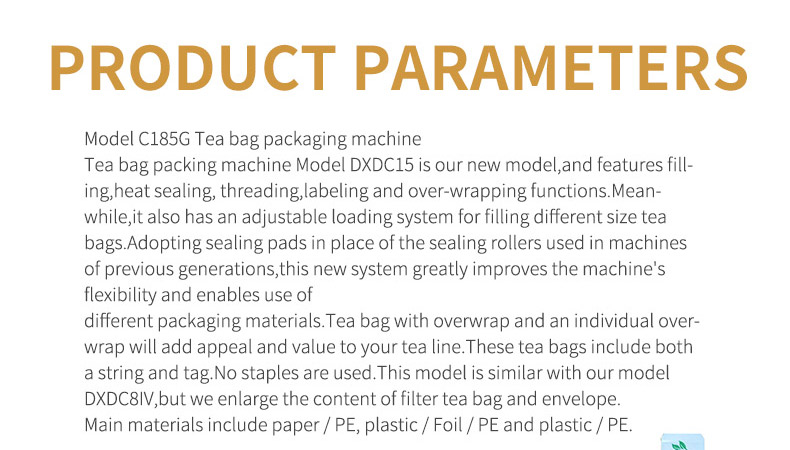

Model C185G Tea bag packing machine
Tea bag packing machine Model C185G is our new model,and features
đổ đầy,heat sealing,threading,labeling and over-wrapping
functions.Meanwhile,it also has an adjustable loading system for filling
different size tea bags.Adopting sealing pads in place of the sealing
rollers used in machines of previous generations,this new system greatly
improves the machine’s flexibility and enables use of different packaging
materials.Tea bag with overwrap and an individual overwrap will add appeal
and value to your tea line.These tea bags include both a string and tag.No
staples are used.
Main materials include paper / PE, plastic / Foil / PE and plastic / PE.

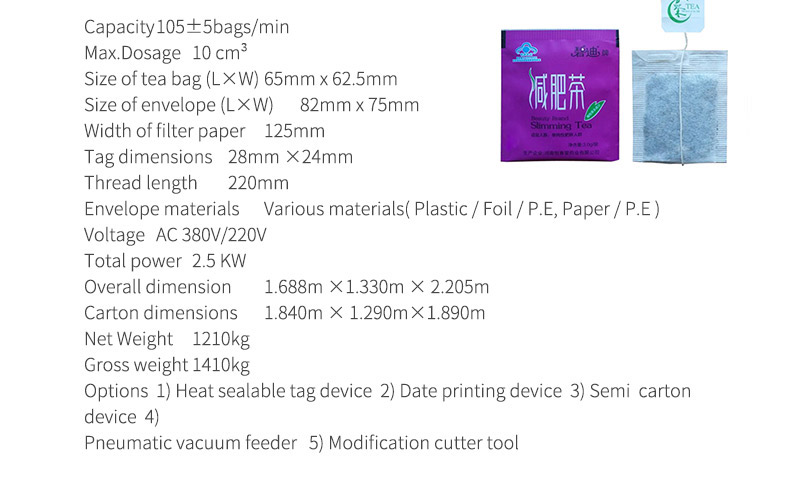

Capacity 105±5túi / phút
Max.Dosage 10 cm³
Size of tea bag (L&lần;W) 65mm x 62.5mm
Size of envelope (L&lần;W) 82mm x 75mm
Width of filter paper 125mm
Tag dimensions 28mm &lần;24mm
Thread length 220mm
Envelope materials Various materials( Plastic / Foil / P.E, Paper / P.E )
Voltage AC 380V/220V
Total power 2.5 KW
Overall dimension 1.688m &lần;1.330m &lần; 2.205m
Carton dimensions 1.840m &lần; 1.290m&lần;1.890m
Net Weight 1210kg
Gross weight 1410kg
Tùy chọn 1) Heat sealable tag device 2) Date printing device 3) Semi
carton device 4) Pneumatic vacuum feeder 5) Modification cutter tool
