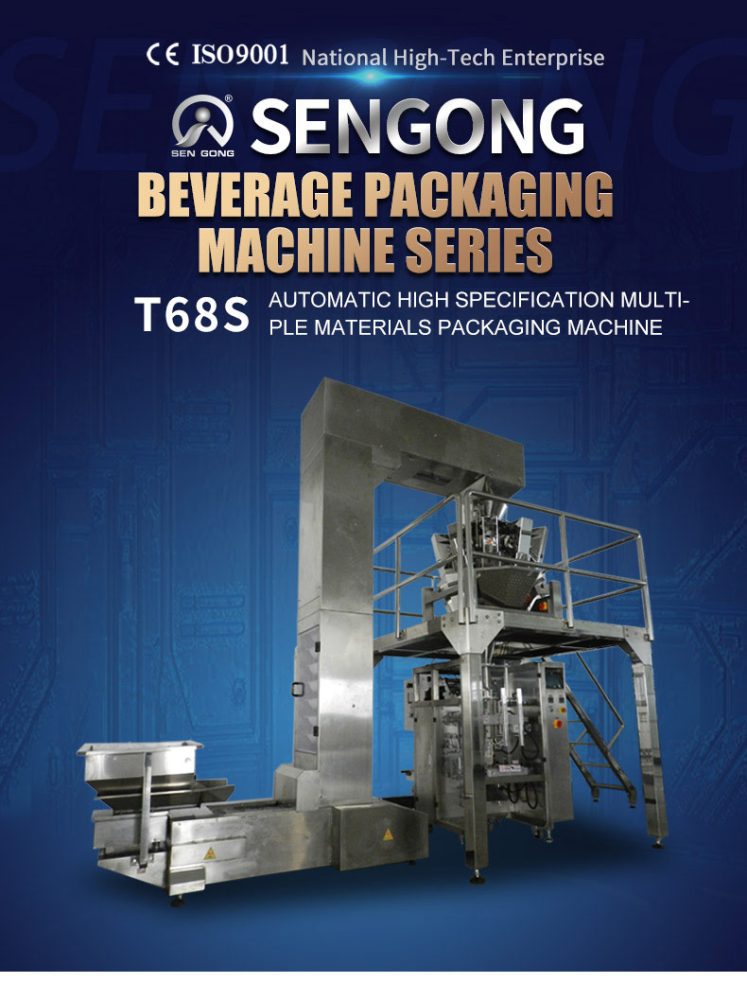

T68S Otomatis Spesifikasi Tinggi Beberapa Mesin Pengemas Bahan

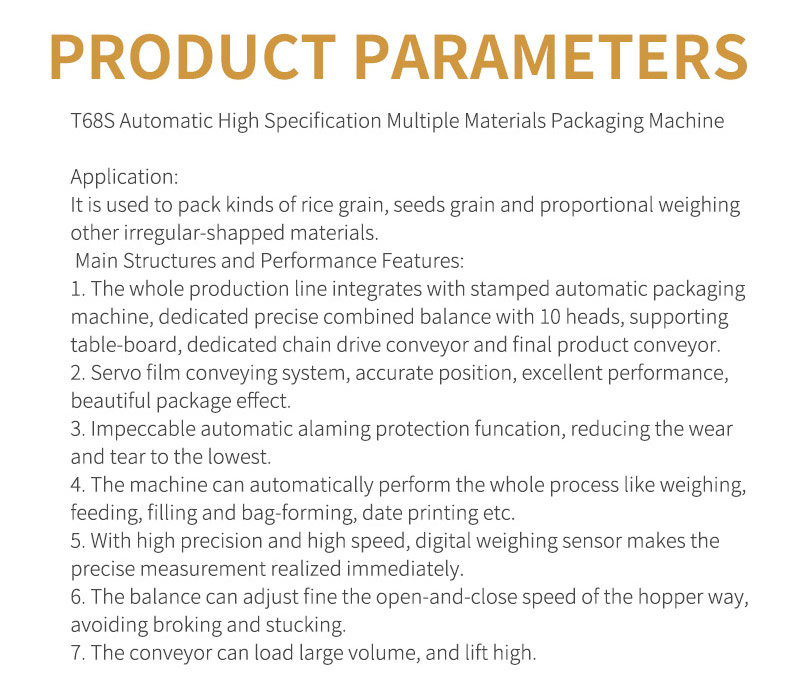

Aplikasi:
It is used to pack kinds of rice grain, seeds grain and proportional
weighing other irregular-shapped materials.
Main Structures and Performance Features:
1. The whole production line integrates with stamped automatic packaging
mesin, dedicated precise combined balance with 10 heads, supporting
table-board, dedicated chain drive conveyor and final product conveyor.
2. Servo film conveying system, accurate position, excellent performance,
beautiful package effect.
3. Impeccable automatic alaming protection funcation, reducing the wear and
tear to the lowest.
4. The machine can automatically perform the whole process like weighing,
feeding, filling and bag-forming, date printing etc.
5. With high precision and high speed, digital weighing sensor makes the
precise measurement realized immediately.
6. The balance can adjust fine the open-and-close speed of the hopper way,
avoiding broking and stucking.
7. The conveyor can load large volume, and lift high.

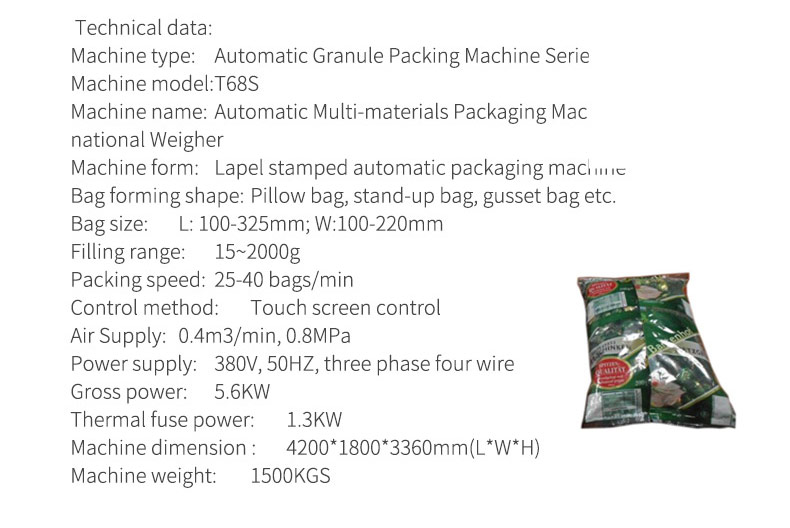

Data teknis:
Jenis mesin: Automatic Granule Packing Machine Series
Model mesin: T68S
Nama mesin: Automatic Multi-materials Packaging Machine with
Combinational Weigher
Machine form: Lapel stamped automatic packaging machine
Bag forming shape: Pillow bag, stand-up bag, gusset bag etc.
Ukuran tas: L: 100-325mm; W:100-220mm
Kisaran pengisian: 15~2000g
Kecepatan pengepakan: 25-40 tas / mnt
Control method: Touch screen control
Air Supply: 0.4m3/mnt, 0.8MPa
Sumber Daya listrik: 380V, 50HZ, three phase four wire
Gross power: 5.6KW
Thermal fuse power: 1.3KW
Dimensi mesin : 4200*1800*3360mm(L*W*H)
Berat mesin: 1500KGS
