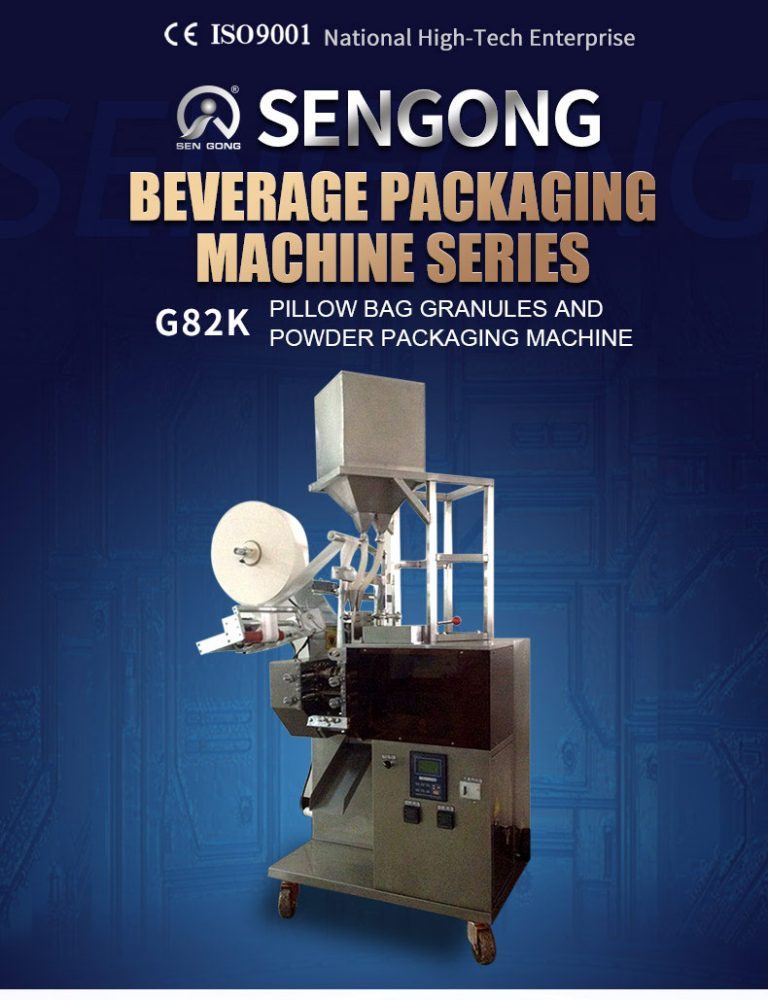

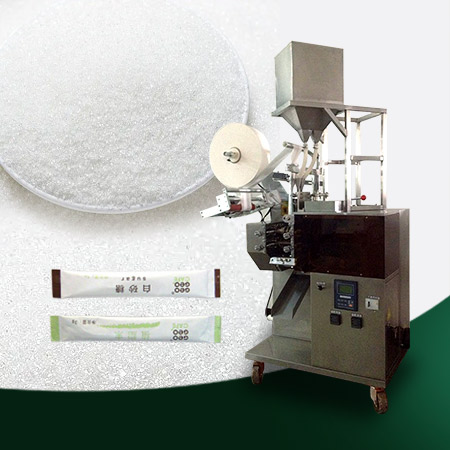

G82K Butiran Tas Bantal Otomatis dan Mesin Pengemas Serbuk

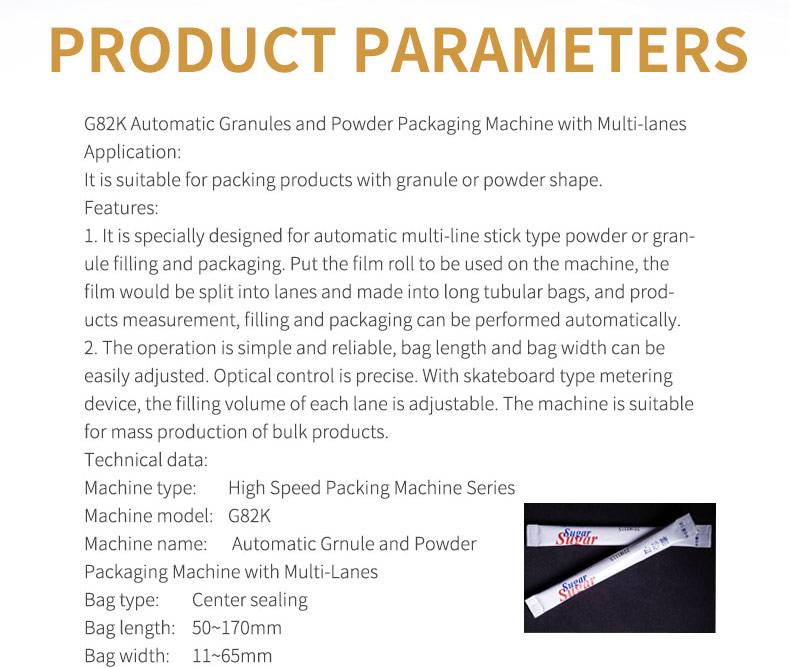

Aplikasi:
It is suitable for packing products with granule or powder shape.
Fitur:
1. It is specially designed for automatic multi-line stick type powder or
granule filling and packaging. Put the film roll to be used on the machine,
the film would be split into lanes and made into long tubular bags, dan
products measurement, filling and packaging can be performed automatically.
2. The operation is simple and reliable, bag length and bag width can be
easily adjusted. Optical control is precise. With skateboard type metering
device, the filling volume of each lane is adjustable. The machine is
suitable for mass production of bulk products.
Data teknis:
Jenis mesin: High Speed Packing Machine Series
Model mesin: G82K
Nama mesin: Automatic Pillow Bag Granules and Powder Packing Machine
Packaging Machine with Multi-Lanes
Jenis tas: Center sealing
Bag length: 50~170mm
Bag width: 11~65mm

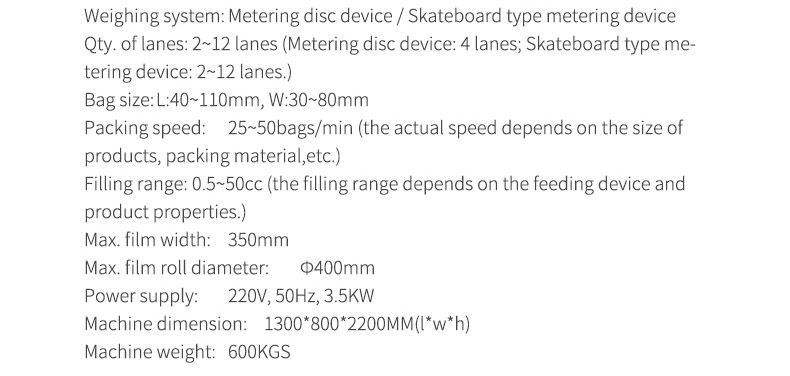

Weighing system: Metering disc device / Skateboard type metering device
Qty. of lanes: 2~12 lanes (Metering disc device: 4 lanes; Skateboard type
metering device: 2~12 lanes.)
Ukuran tas: L:40~110mm, W:30~80mm
Kecepatan pengepakan: 25~50bags/min (the actual speed depends on the size of
produk, packing material,dll.)
Kisaran pengisian: 0.5~50cc (the filling range depends on the feeding device
and product properties.)
Maks. film width: 350mm
Maks. film roll diameter: Φ400mm
Sumber Daya listrik: 220V, 50Hz, 3.5KW
Dimensi mesin: 1300*800*2200MM(l*w*h)
Berat mesin: 600KGS
