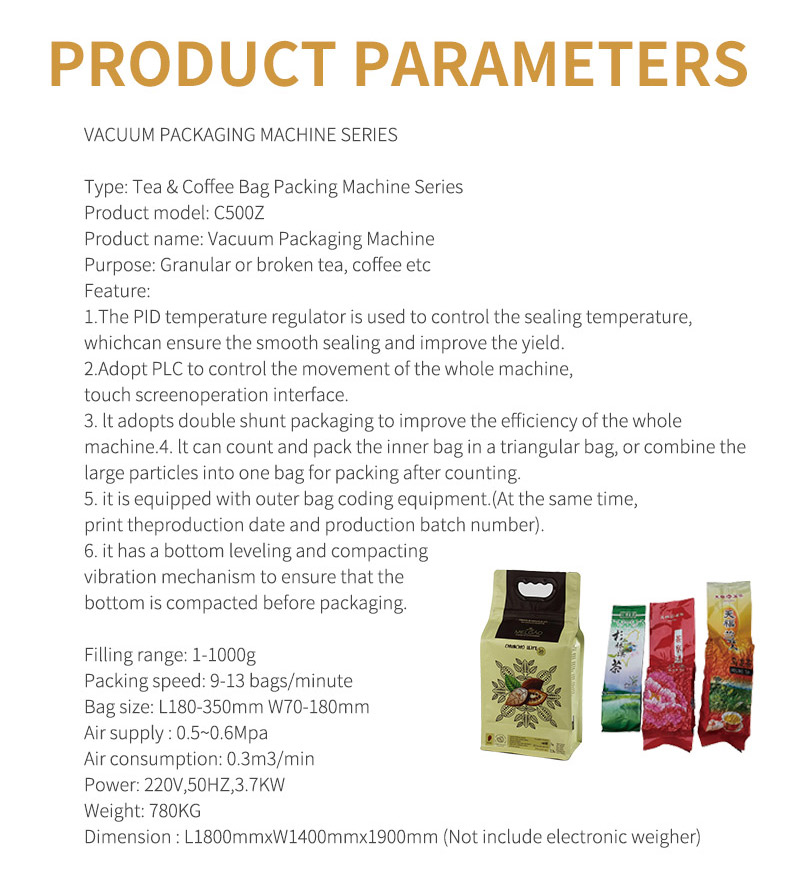

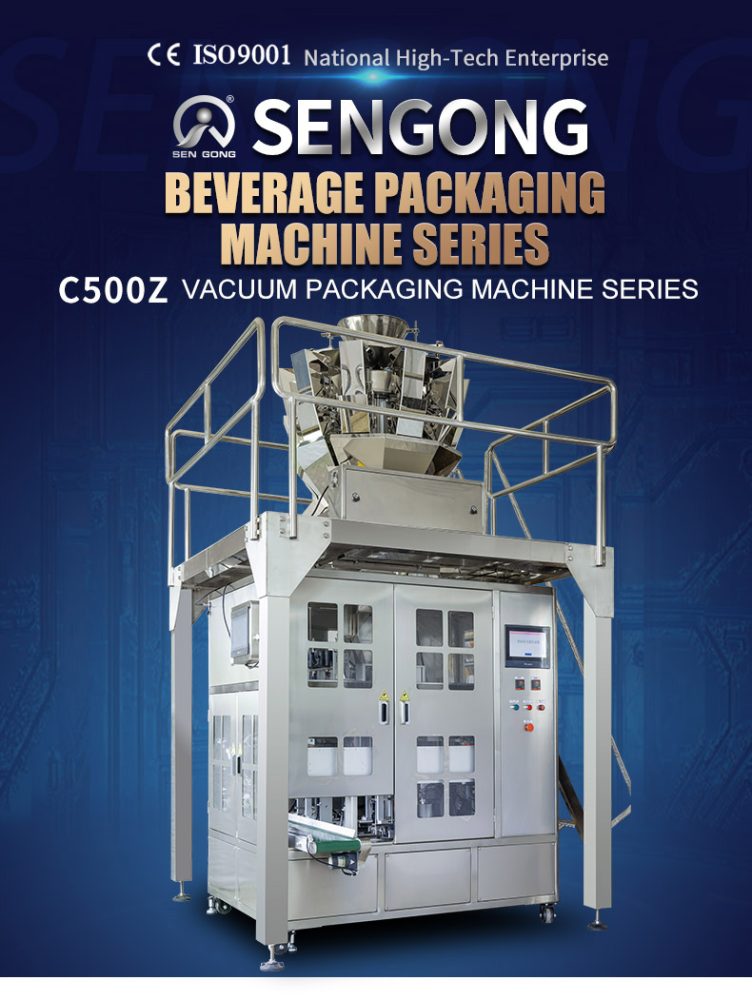

C500Z VACUUM PACKAGING MACHINE SERIES
Type: Tea & Coffee Bag Packing Machine Series
Product model: C500Z
Product name: Vacuum Packaging Machine
Purpose: Granular or broken tea, coffee etc
Feature:
1.The PID temperature regulator is used to control the sealing temperature, whichcan ensure the smooth sealing and improve the yield.
2.Adopt PLC to control the movement of the whole machine, touch screenoperation interface.
3. lt adopts double shunt packaging to improve the efficiency of the whole machine.4. lt can count and pack the inner bag in a triangular bag, or combine the large particles into one bag for packing after counting.
5. it is equipped with outer bag coding equipment.(At the same time, print theproduction date and production batch number).
6. it has a bottom leveling and compacting vibration mechanism to ensure that the
bottom is compacted before packaging.
Filling range: 1-1000g
Packing speed: 9-13 bags/minute
Bag size: L180-350mm W70-180mm
Air supply : 0.5~0.6Mpa
Air consumption: 0.3m3/min
Power: 220V,50HZ,3.7KW
Weight: 780KG
Dimension : L1800mmxW1400mmx1900mm (Not include electronic weigher)
