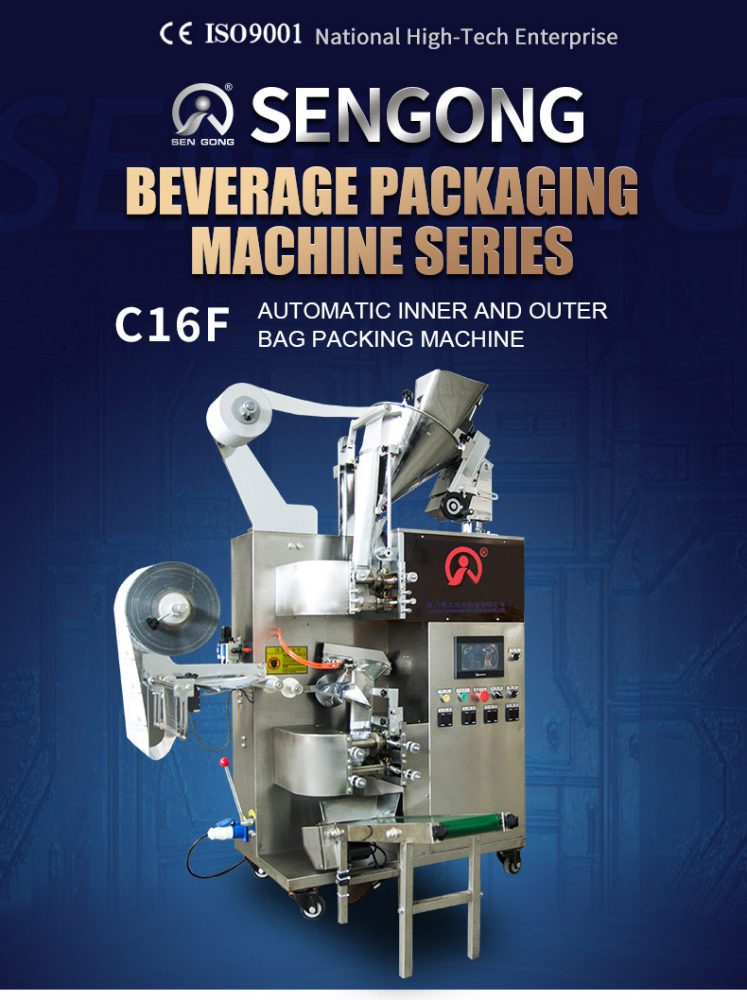

C16F Automatic Inner and Outer Tea Bag Packing Machine （Horizontal Auger Filler）
l Application:
It is suitable for double bag packing of small granular products, such as
tea leaves, medicinal tea, health care tea and herbs tea, etc.
l Features:
1. This machine is an automatic multi-function teabag packing machine
equipment with a new heat sealing type.
2. The inner and outer bag making is finished at the same time, avoid
direct contact with the packing material and improve work efficiency. Inner
bag is made of filter paper, and outer bag is made of composite paper.
3. The biggest advantage: Packing capacity, the size of inner and outer bag
can be easily adjusted according to different requirements in order to
achieve the best packing results, improving product appearance and
enhancing the value of the product.
l Technical data:
Machine type: Tea Bag Packing Machine Series
Machine model: C16F
Machine name: Automatic Inner and Outer Tea Bag Packing Machine（Horizontal
Auger Filler）
Packing material: Paper/Plastic, Plastic/Plastic, Plastic/Aluminum/Plastic,
Paper/Aluminum/Plastic, Tea filter paper
Measuring: Horizontal Auger Filler
Filling range: 1-15g
Packing speed: 40~60 bags/min
Outer bag size: L:70-120mm , W:60-90mm
Inner bag size: L: 50-110mm, W: 40-80mm
Power supply: 220V, 50HZ, 4.5KW
Dimension : 1200*900*1900mm(L*W*H)
Machine weight: 500KGS
